Power shears
Arc
- Equipped with ball bearings = precise and light cutting.
- Long-life knives due to the precise movement.
- Articulated structure makes it possible to feed the plate under the articulation.
- Rectangular plate stop on the side of the table.
- Plate holder acts as finger protection, control with one lever, easily turnable to the side.

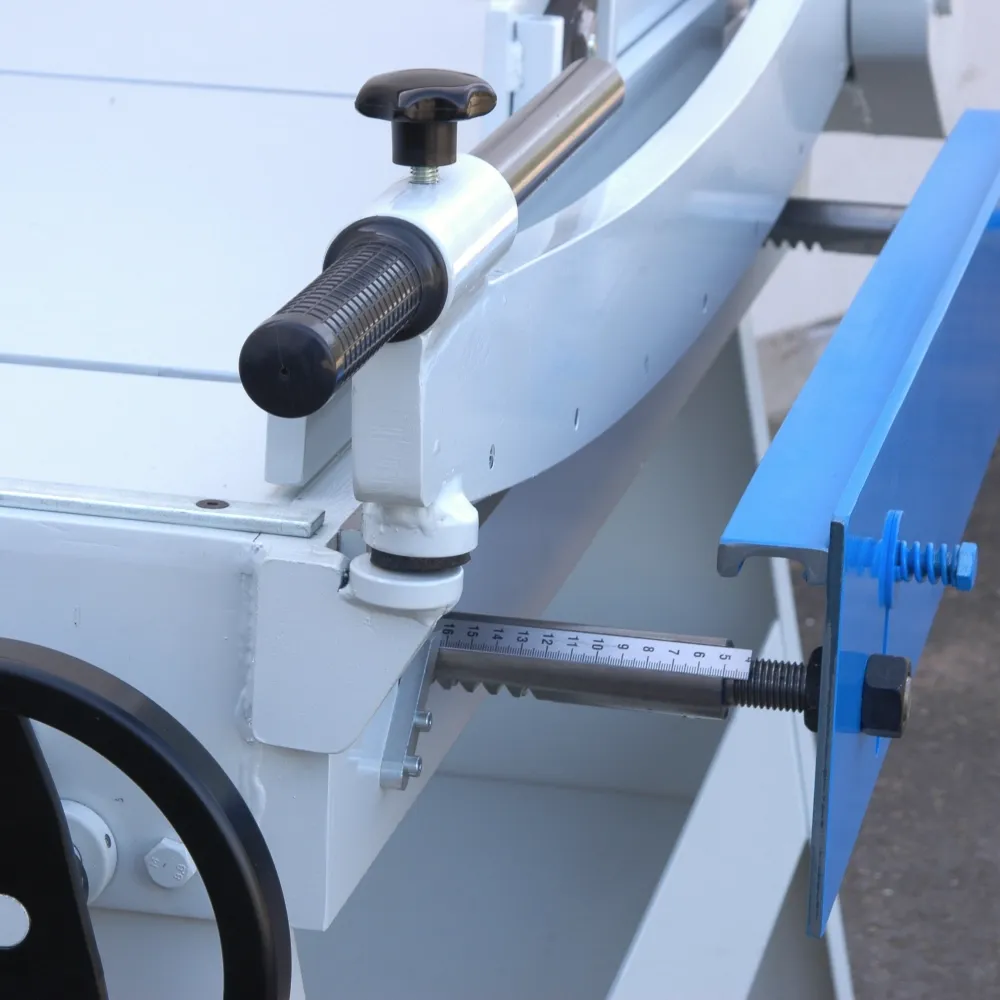

Stop
Equipped with measuring scale, easily adjustable with the hand wheel. Locking with one lever.
Technical Specifications
| Type | Blade length (mm) | Table width (mm) | Cuts 400 N/mm² (mm) | Stop adjustment range (mm) | Weight (kg) |
|---|---|---|---|---|---|
| JK 1000 | 1080 | 550 | 1.5 | 520 | 250 |
| JK 1250 | 1330 | 550 | 1.5 | 630 | 300 |
Optional equipment
- Angle stop of the table, turnable 0 - 30º.
- Arc lock, prevents unauthorized use.
