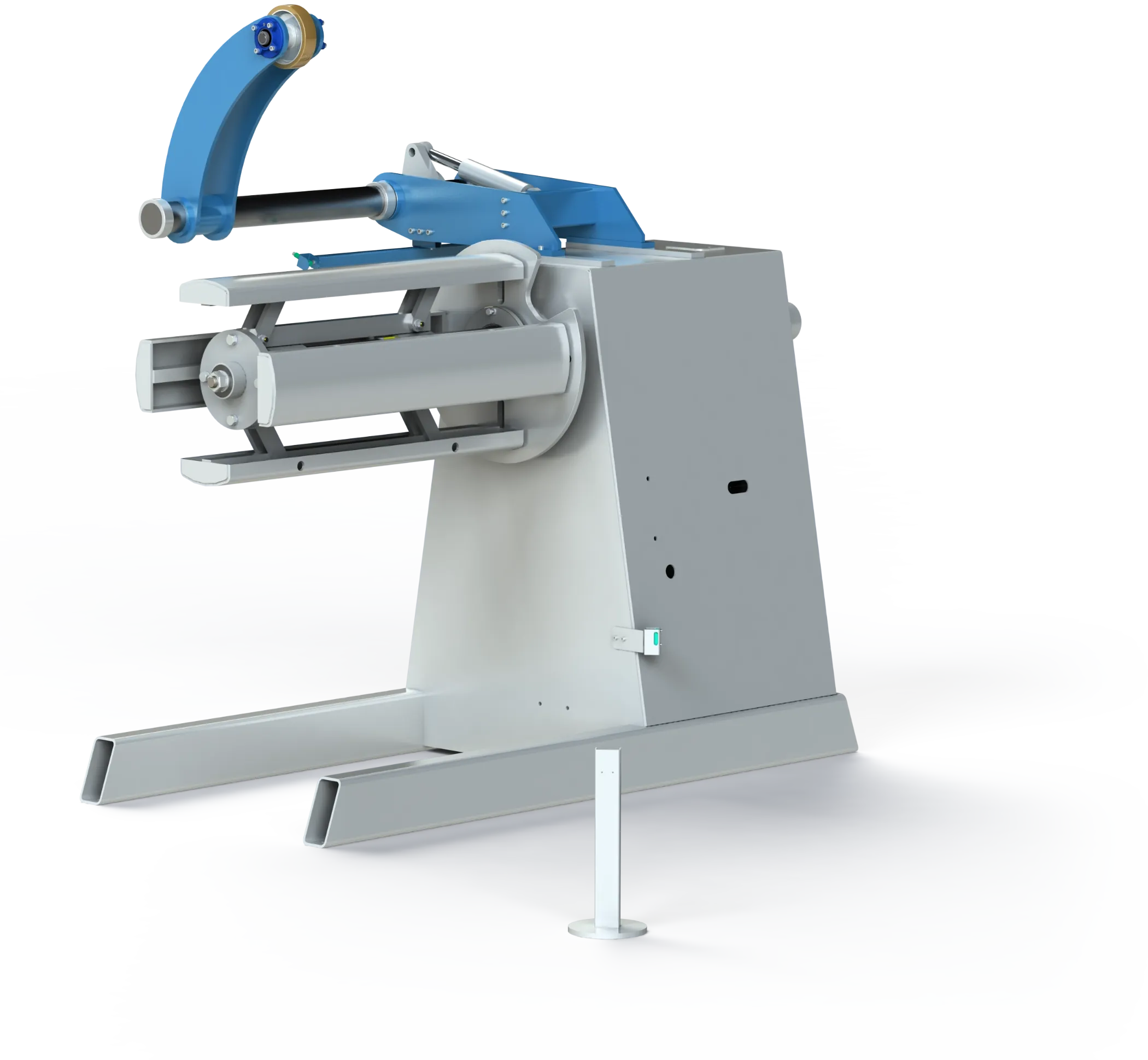

Coiler JKH5

Coiler

JKH5

  • Hydraulic tensioning
  • Max coil weight 5 000 kg

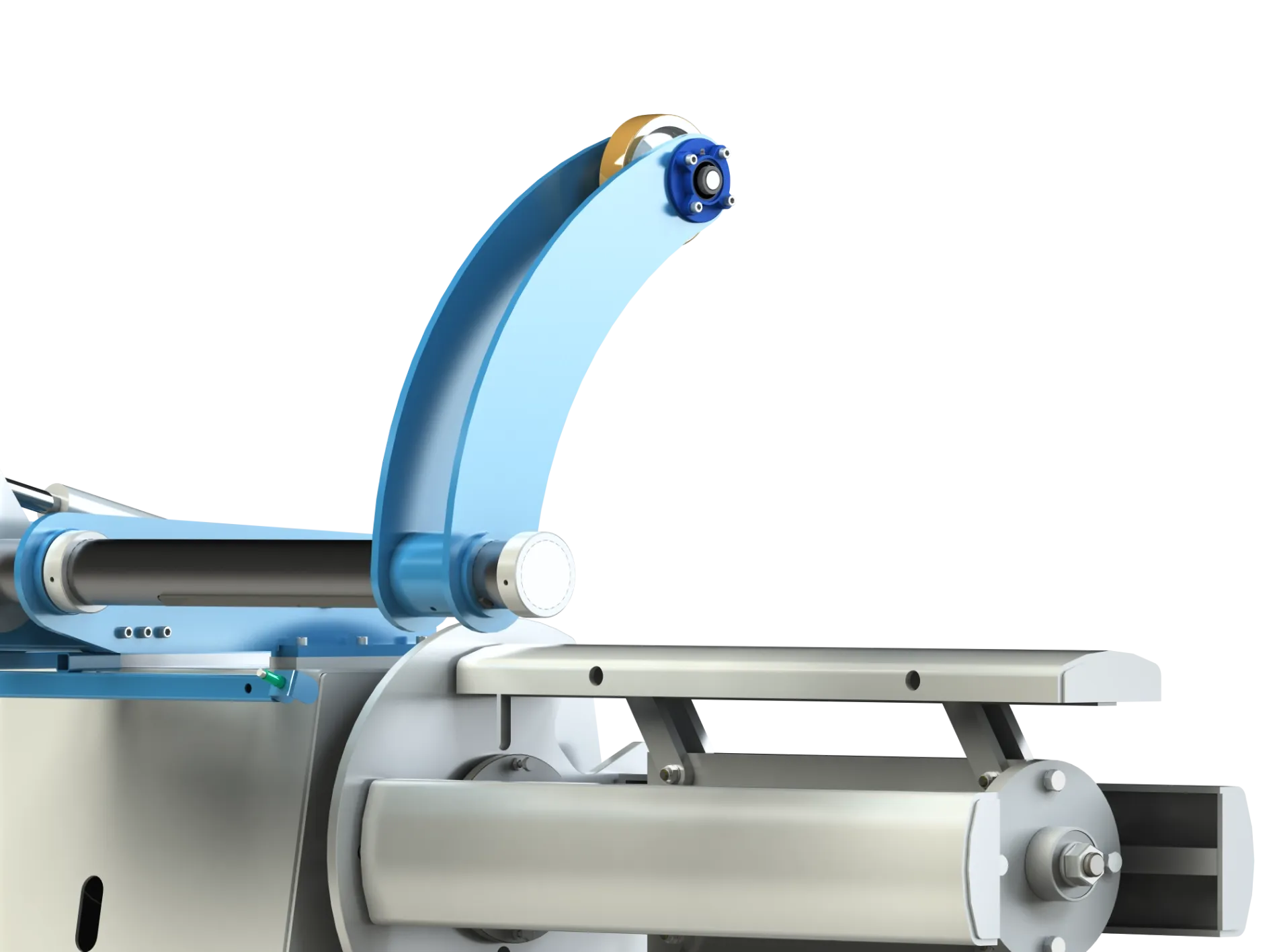

Hydraulic press rollers of plate band

An optional press roller presses against the coil to keep the sheet metal from loosening.

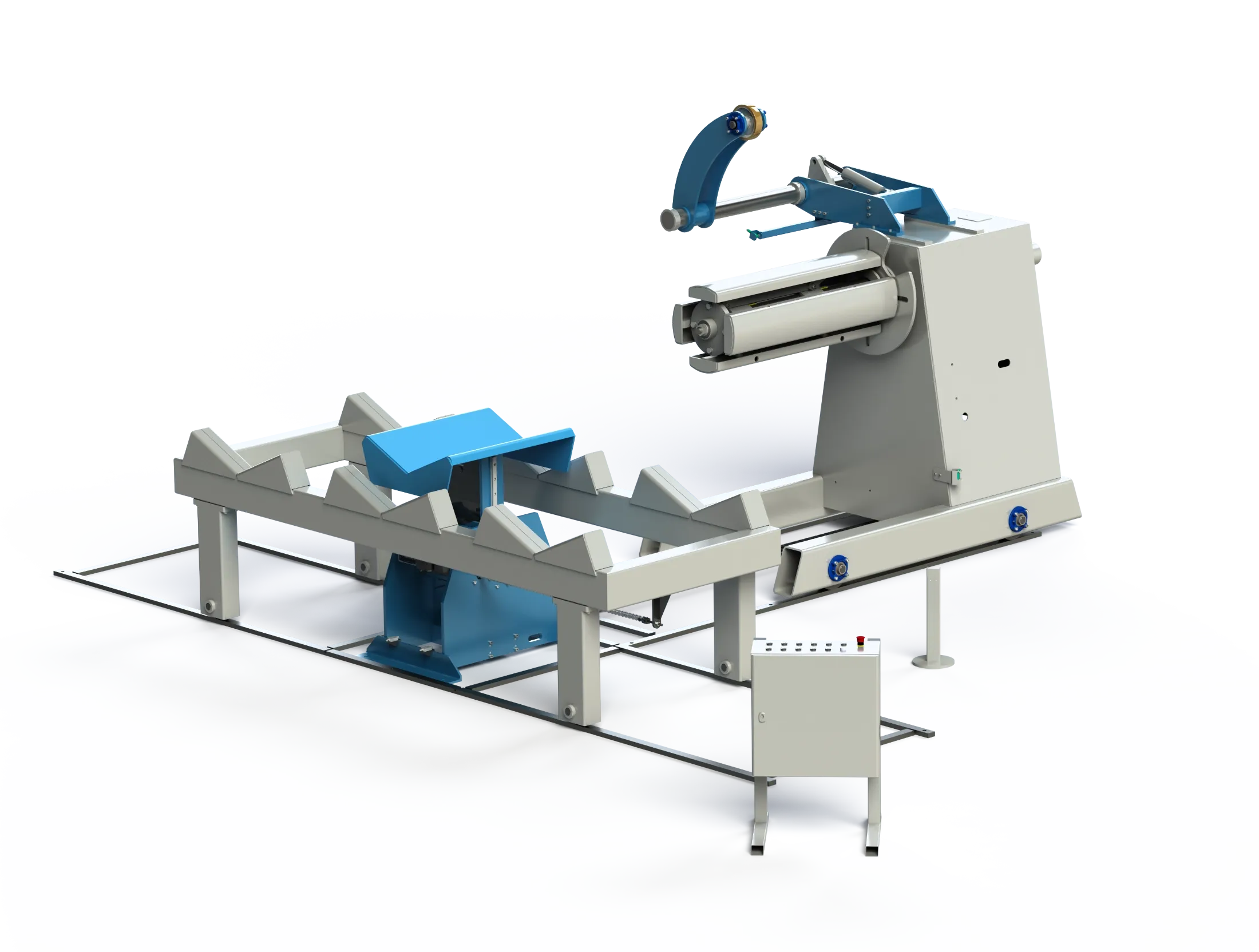

3-coil loading cart

The optional 3-coil loading cart holds three coils of up to 5 000 kg each beside the JKH5. Once the coils are on the cart, the operator changes them from push-button controls, quickly and safely, without a crane.

Coilcart

Coilcarts run on rails alongside the coiler and move coils into position for loading and unloading. They are available separately as optional accessories in two capacities to match your coil weight.

Coilcart JKNV5 coil loading and unloading cart

Optional accessory

Coilcart JKNV5

Capacity
5 tonnes
Coilcart JKNV10 coil loading and unloading cart

Optional accessory

Coilcart JKNV10

Capacity
10 tonnes

Technical Specifications

Maximum weight of plate coil 5 000 kg
Unwinding speed of plate coil 0–30 m/min
Traction motor 3 kW
Maximum coil width 1250 mm
