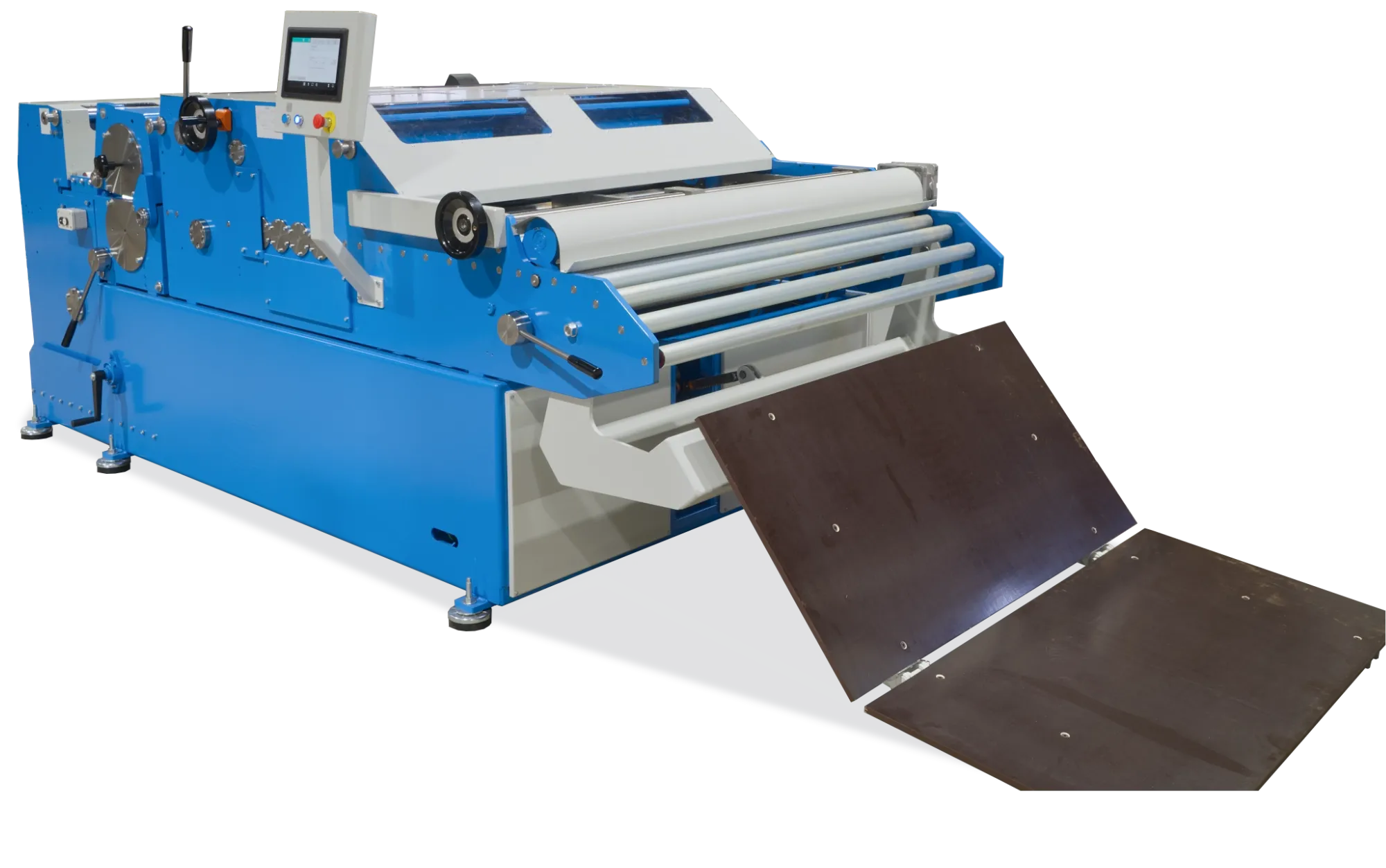

Cutting line
JK 9020
- Lengthwise cutting
- Cutting-off and sheeting
- Straightening unit
- An easy-to-use assembly
Technical Specifications
| Maximum sheet width | 1500 mm |
| Sheet thickness | 0.4–2.0 mm |
| Adjustable speed | 5–30 m / min |
| Straightening rolls | 7 |
| Draw-in roller | Urethane coating |
| Lengthwise cutter | 3 cutting blade pairs2 cutting edges |
| Shearing angle of the sideways cutter | 1.8° |
| Repeatability accuracy of the slitter (motorised uncoiler) | ± 0.5 mm / m |
| Maximum longitudinal feed | 1000 m |
| Electrical power | 10 kW / 50 A |
| Splitter blade positioning gauge | Digital |
| Working height | 930 mm |
| Dimensions (w/h/l) | 2000 mm / 1300 mm / 3000 mm |
