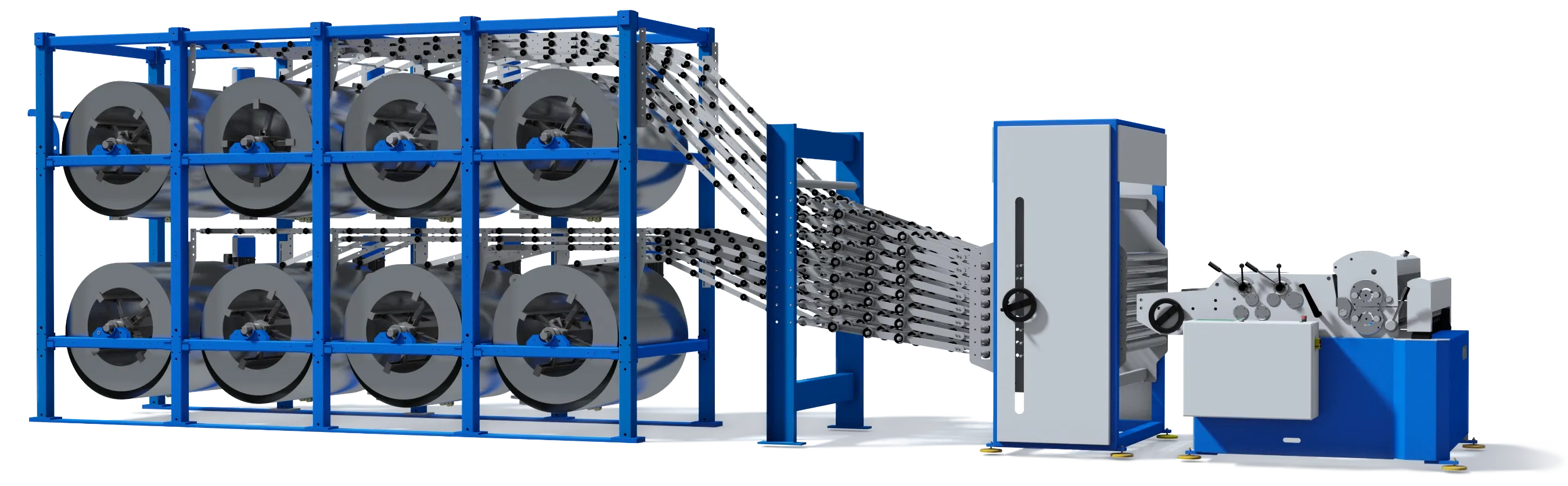

Automatic cut-to-length / coil decoiling system
JK 2015
- Slitting, cutting and straightening in one line.
- Digital display for slitting blade positioning.
- Eight decoilers on a two-floor structure, each with its own motor.
- Automatic loop control keeps the line running continuously.
- Sheet width up to 1250 mm, thickness up to 1.25 mm.
Cut-to-length machine
| Sheet width, max | 1250 mm |
| Sheet thickness, max | 1.25 mm |
| Adjustable speed, max | 30 m / min |
| Straightening rolls | 4 pcs |
| Slitting blades | 3 pcs as standard |
| Slitting blade positioning | Digital display |
Options
- Additional slitting blades.
- Plastic film applicator.
Automatic multi-coil decoiling system
A two-floor structure carries eight decoilers, each with its own motor and a pneumatic stopper for standby coils. Continuous sheet guiding tracks run from every decoiler to the coil selector, and automatic loop control with sensors keeps the strip feeding the line without manual intervention. Coils can be loaded with an overhead crane or a forklift.
| Decoilers | 8 pcs on a two-floor structure |
| Load, max | 5 t / decoiler |
| Coil width, max | 1250 mm |
| Coil outer diameter, max | 1100 mm |
| Decoiling speed | 0 – 30 m / min |
| Structure height | 3400 mm |
| Structure width | 2300 mm |
Option
Separate mandrels for a maximum load of 5000 kg, equipped with an A-frame and a brake.
